Production In Rolls – Type Rowel
This is the FASTEST MESH WELDING MACHINE IN THE WORLD and the most technologically advanced production line used mostly for different types of industrial mesh and cheap fencing.
This mesh machine can be completely automatic!

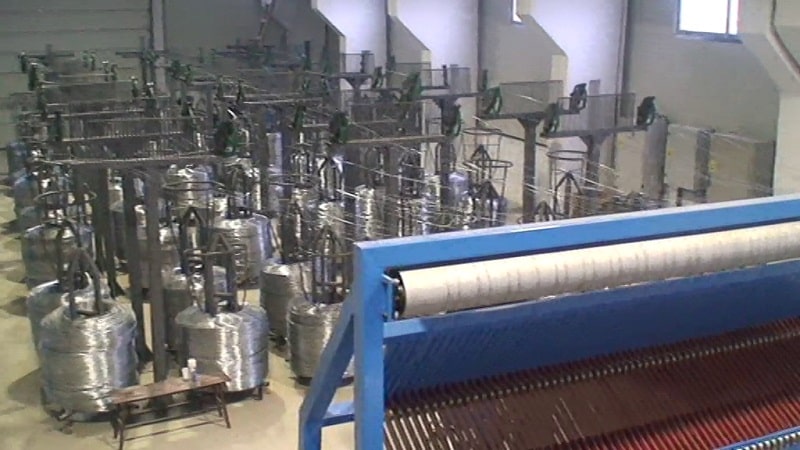

Wire coils are mounted on dedicated pay-offs for Line wire feeding.
Dedicated tension and missing wire control device is helping keep wires nicely separated and easy to control.

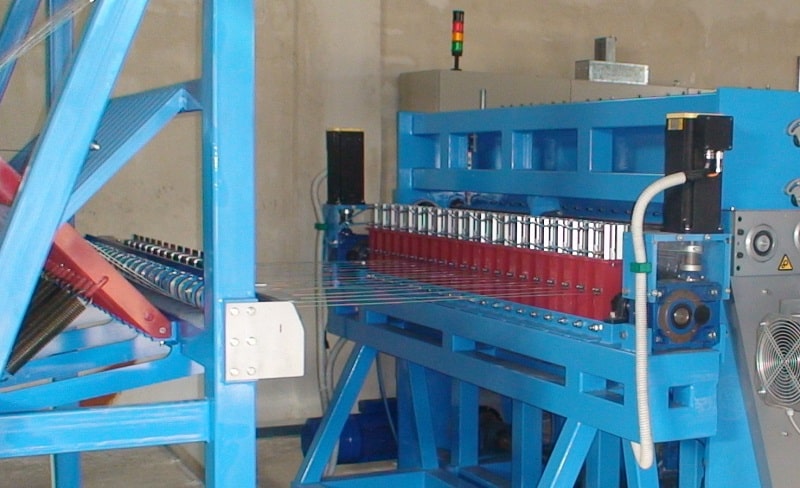

Wires are then advanced by the second set of Servo – Motorized rollers, through the vertical straighteners, into the welding machine!
The cross wire is off-coiling from the motorized pay-off station. Wire is pulled by the buffer feeding rollers, and goes through the pre-straighteners, buffer, servo-feeding rollers and straighteners.

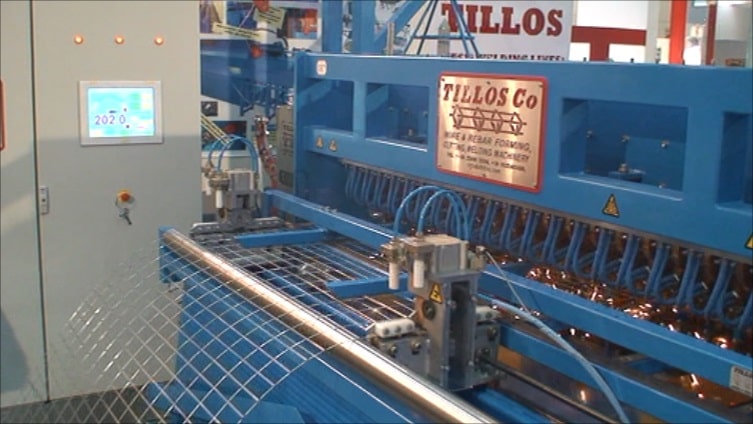

The needed length of wire is advanced into the welding station, cut at exact length and positioned for welding, by special devices.
Dedicated cutter is severing the ready mesh at the programmed size.
Ready mesh is coiled on the dedicated rolling device at the programmed length!
Managing of the mesh and the evacuation of the roll can be completely automatic!
