Welding line production off-coil Type Dowel

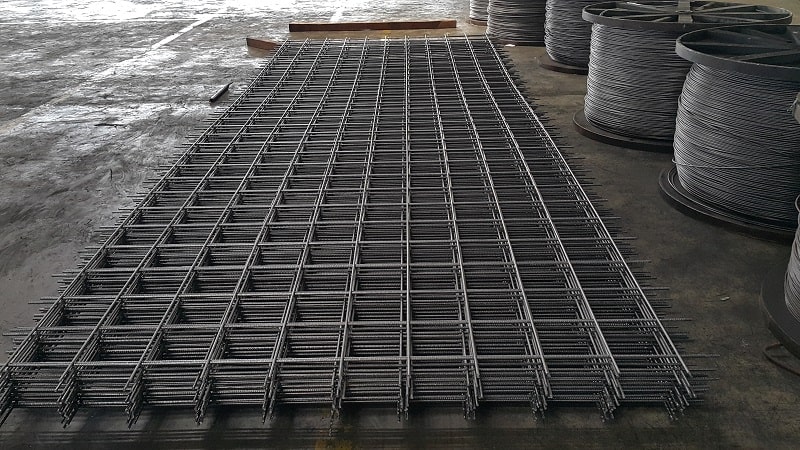

This type of machine is fully automatic for the production of construction mesh in sheets.
Line and cross wires feeding is directly from spools, via pay-offs.

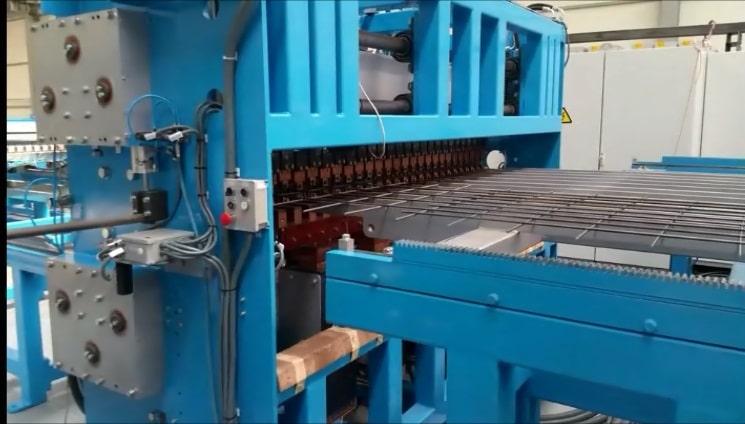

Specially designed cross wire up/down shooting system, there is no need for overturning.
Wire coils/spools are mounted on dedicated pay-offs for Line wire feeding.
Motorized rollers are pulling the line wires, helping them uncoil smoothly! Horizontal straighteners are helping keep the wire nicely separated and easy to control though the dedicated buffer and tension/missing wire control. Wires are then advanced by the second set of Servo – Motorized rollers, through the vertical straighteners, into the welding machine!
The cross wire is off-coiling from the motorized pay-off station. Wire is pulled by the buffer feeding rollers, and goes through the pre-straighteners, buffer, servo-feeding rollers and straighteners.
Mesh is advanced and dedicated cutter is cutting it, at the programmed size.

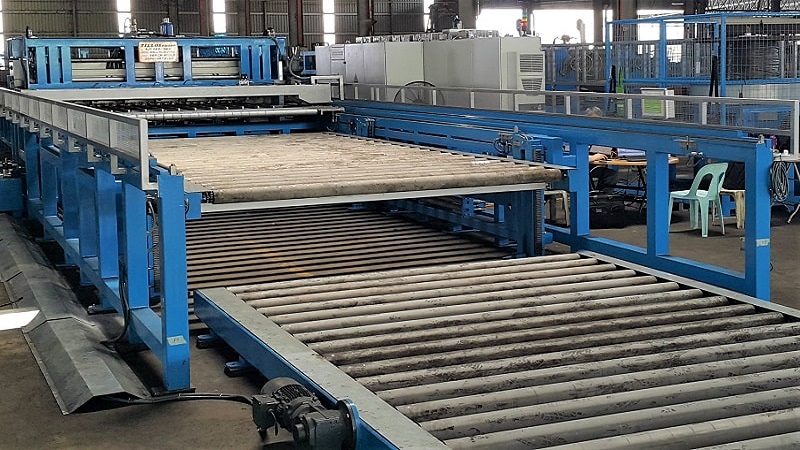

Any type, from simple to fully automatic stacking is available!
The complete operation is automatic and easily programmable!
