Production Off Coils – Type Fewel

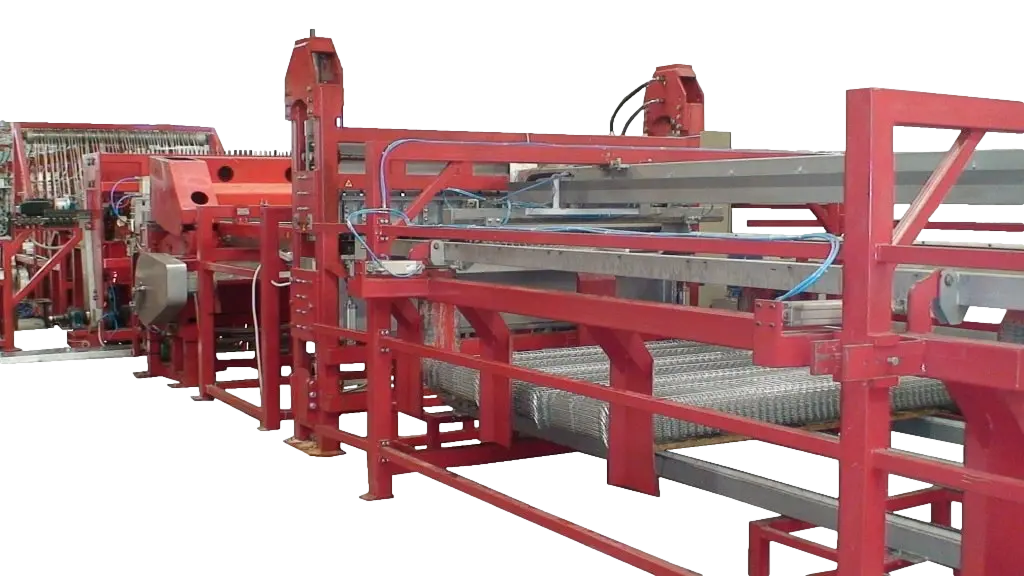

This HIGH SPEED, welding machine, is specially designed for the production of 3D Mesh panels. It is used in many types of residential and commercial FENCE systems. It is completely automated and easily manageable by one operator!
It works off coils, via pay-offs, for both line and cross wire.

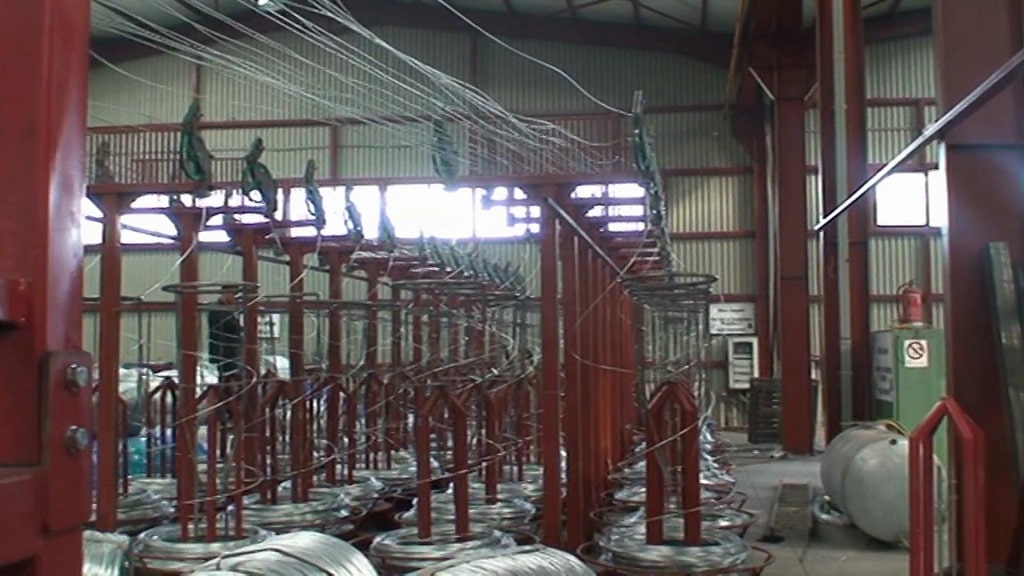

Wire coils are mounted on dedicated pay-offs for Line wire feeding.
Motorized rollers are pulling the line wires, helping them uncoil smoothly! Horizontal straighteners are helping keep the wire nicely separated. They are controlled though the dedicated buffer and tension/missing wire control.
Wires are then advanced by the second set of Servo – Motorized rollers, through the vertical straighteners, into the welding machine!

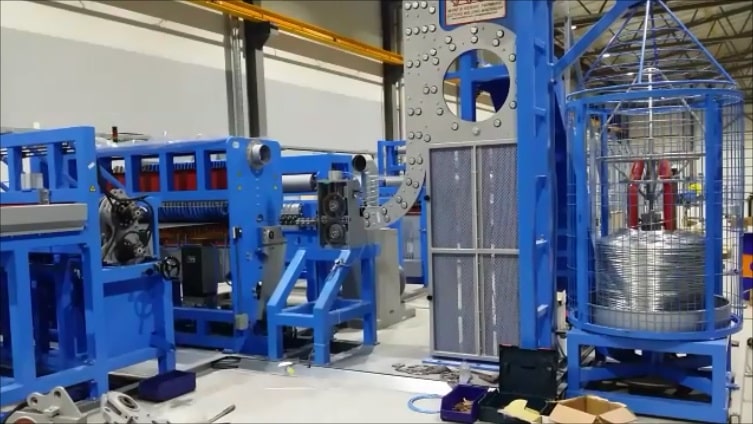

The cross wire is off-coiling from the motorized pay-off station. Wire is pulled by the buffer feeding rollers, and goes through the pre-straighteners. Then, buffer servo-feeding rollers and straighteners. The needed length of wire is advanced into the welding station, cut at exact length and positioned for welding, by special devices.
Dedicated cutter is severing the ready mesh at the programmed size.
In case of making V-pressing, dedicated advancing carriage will position the mesh through the process. Any type, from simple to fully automatic stacking is available front, or side bundle removal!
